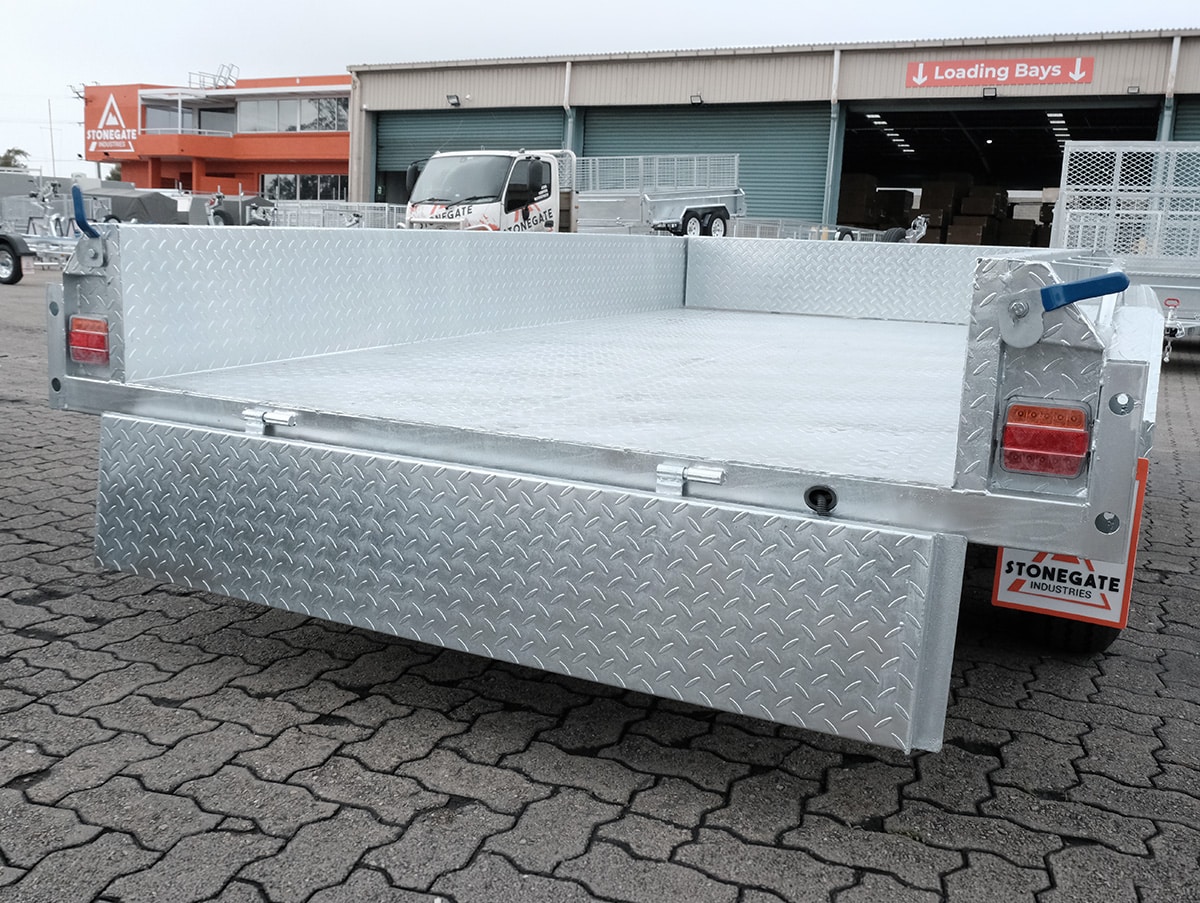

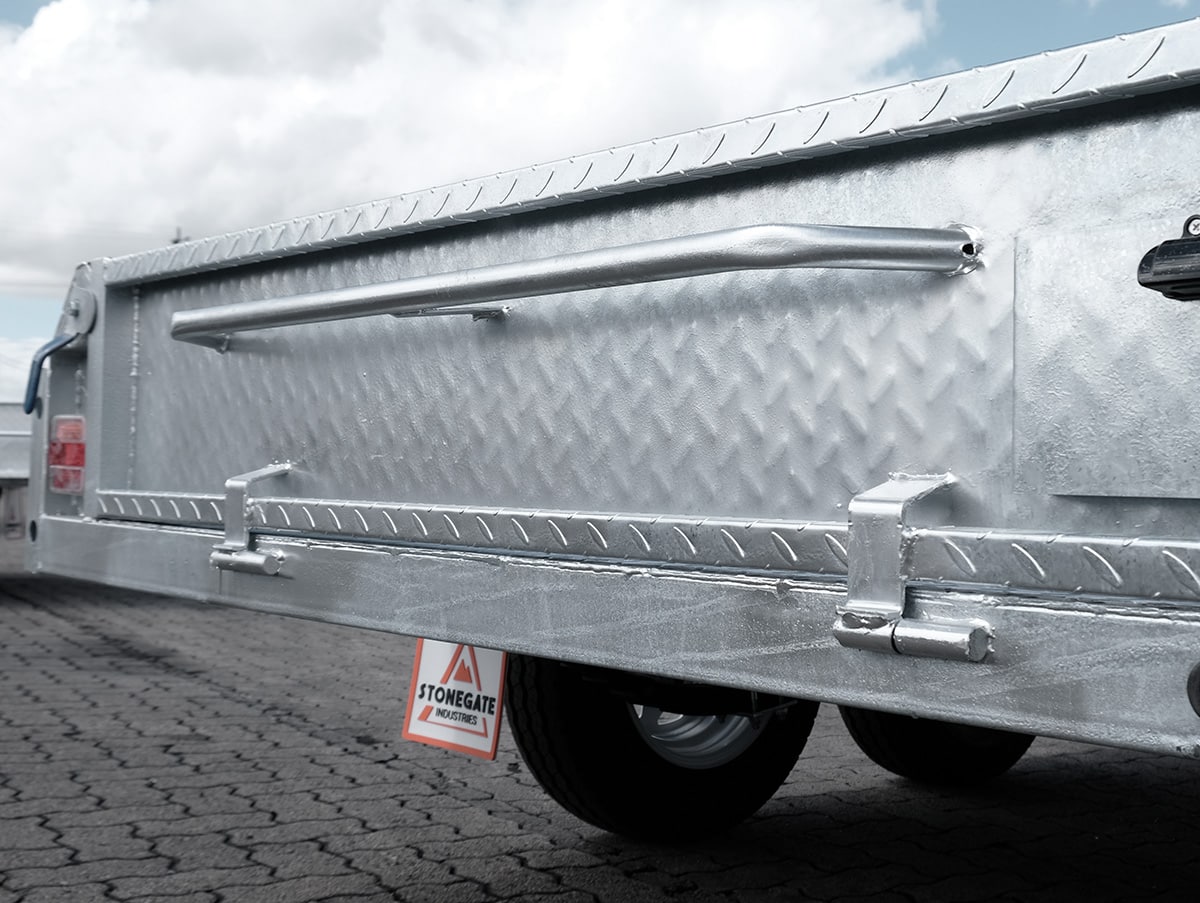

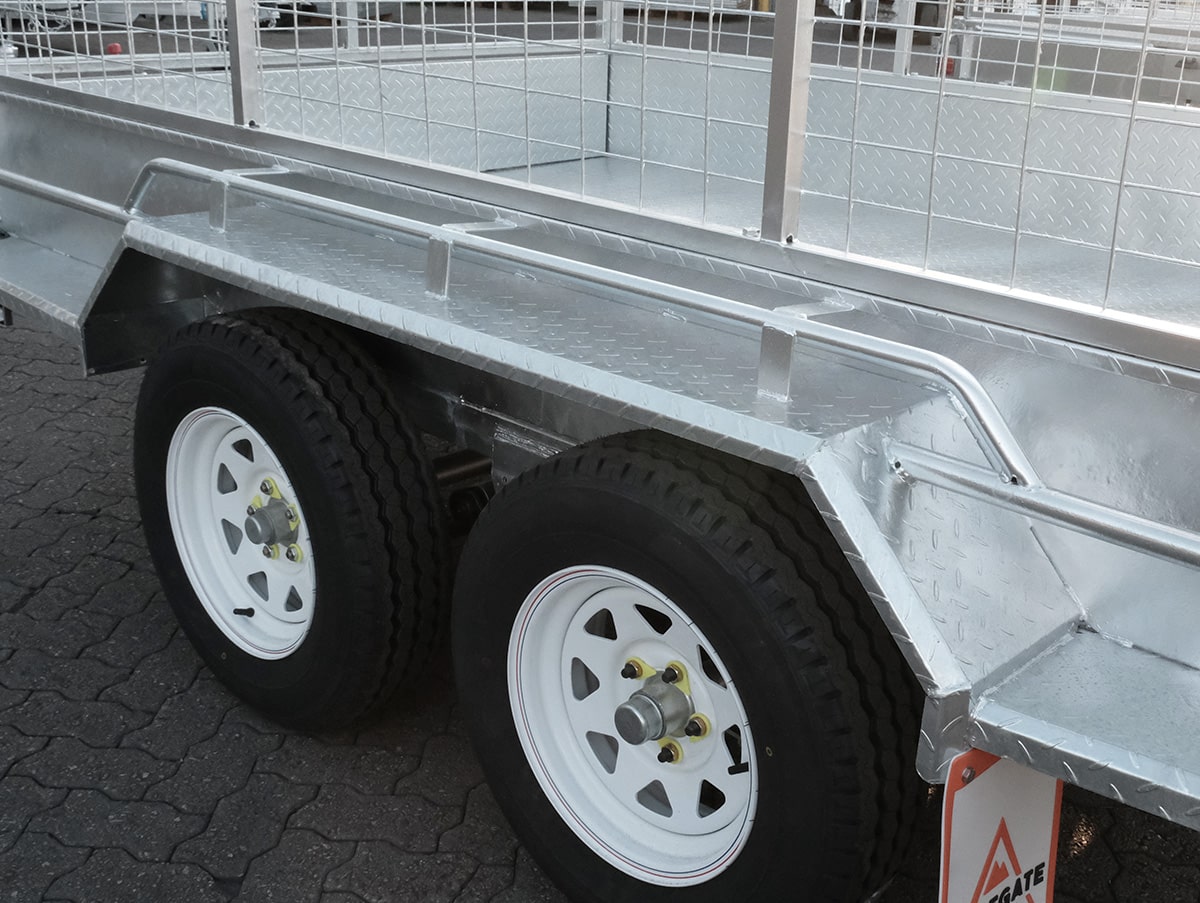

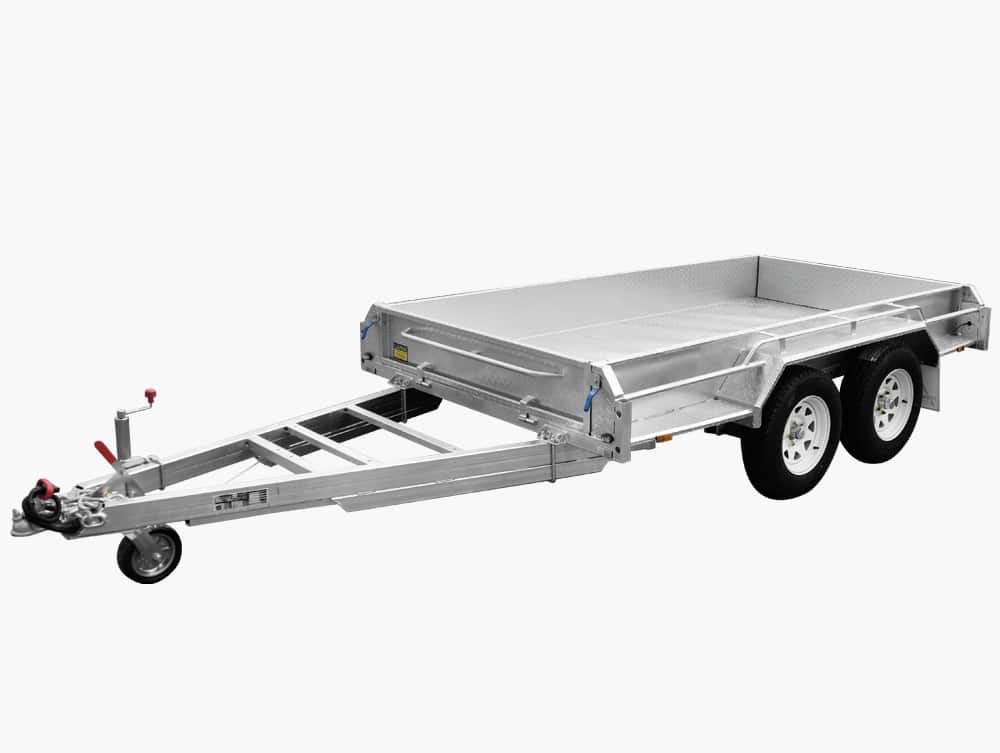

Hot Dipped Galvanized Tandem Trailer (Rust Free) – ATM 1990KG
1900MM Ultra-long Draw Bar for Easy Reversing
With Hot Dipped Galvanized 600mm Tall Cage (Rust Free)
Inner Box Dimensions: 2400mm x 1500mm
Fully Welded Heavy Duty Body with RHS Tube Chassis
Electric Brake System (Drawbar Electric Brake Controller Available If You Don’t Have a Controller In Your Vehicle)
14″ Brand New Sunraysia Rims and Light Truck Tyres
Reinforced Under Floor with Extra Support Beams
Heavy Duty Rocker Roller 7 Leaf Springs Suspension
Upgraded 2.5mm Hot Dipped Galvanized Checker Plate Floor
Upgraded 2.5mm Hot Dipped Galvanized Checker Plate on the Inner Sides of Box
Front and Rear Fold Down Gates (Removable)
Tie Down Rails all Around
Welded Step Up Platform on top of The Wheel Guards
Free Swing up Jockey Wheel
LED Tail Lights
ADR Standard Heavy Duty Chain & Load Rated Shackle
Flat 7 Pin Plug
900mm Removable Cage – Extra $100
Ladder Racks – $95
14″ Spare Wheel – $120
Stand-up Wheel Holder – $35
Sml/Lg Tool Box – $299/$399
Mower Box – $399
Mesh Ramp Door – $350
Ring us now 07 3800 1283 or 0430 012 339 for more details
Photos for Illustration Purposes Only!
Trailers sold by Stonegate Industries are covered by the manufacturers’ warranty for a period of 12 months. This warranty period is valid from the date of original purchase and covers all products against defective materials or workmanship (jockey wheel, bearings, tyres, wheels, brake pads & wearable parts are excluded). Please note warranty does not cover a product damaged due to improper maintenance, misuse or abuse, accident, external influences such as water and fire. Warranty does not cover repairs required due to normal wear and tear. Stonegate Industries take no responsibility for any damage caused to property or persons through storage and use of products and equipment. Warranty void if physical damage found on item, unauthorized repair/service/disassembling, abused, improper setup/use of the products, failing to follow product instruction, stress the product beyond its stated limit etc.
The warranty will not cover any freight or postage cost at both ends. Customer will have to inspect the condition of the trailers upon pickup and report to us within 7 days for initial fault. Warranty claim generally takes a few business days.
Please kindly retain your sales invoice as a proof of purchase and must be presented when making a warranty claim. Trailers must be returned to Stonegate Industries for warranty work to be done.
Inspection and Maintenance
1. Upon receipt, please inspect the condition of the trailer. Please also check the following before use. Tyre must be checked before use.
- Nuts and bolts.
- Moving positions.
- Any bending, breakage or leakage.
- Safety chain, Ensure chain is in good condition.
- Lights and wiring.
- Tyre pressure and condition.
- Any abnormal noise of vibrations.
2. Check that the fastening of tyre nuts every 80km and tighten as required.
3. Apply grease to the hubs every 800km, bearing every 1200km.
No refunds will be given if you have changed your mind, customers will have to inspect the condition of the trailer upon pickup and report to us within 7 days for initial fault. Our mechanics will then examine and test the fault and replace or repair any item deemed to be faulty, if the item cannot be repaired or exchanged, store credit will be given.
