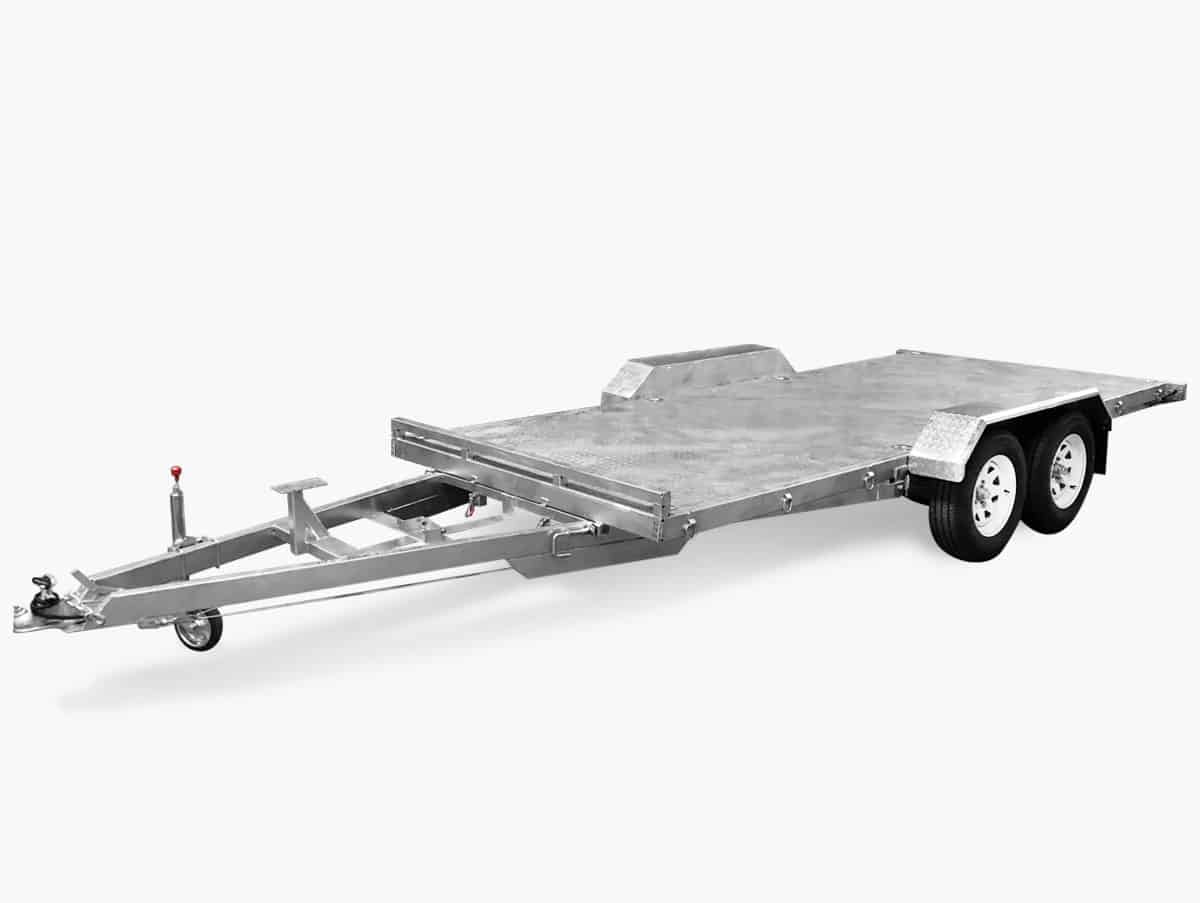

16×6 Car Trailer


Category: .

Product Description



$6,999 (Registration not included)

Hot Dipped Galvanized (Rust Free) – ATM 3200KG
1900MM Ultra-long Draw Bar for Easy Reversing

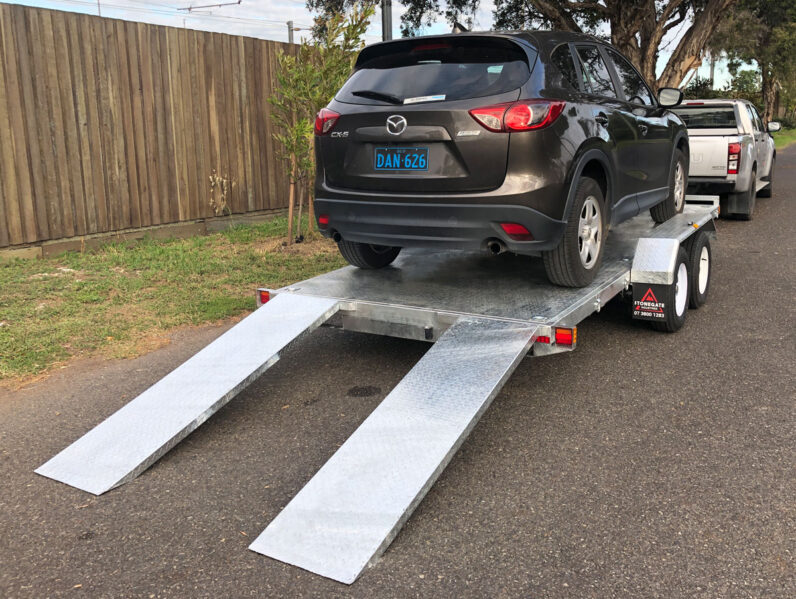

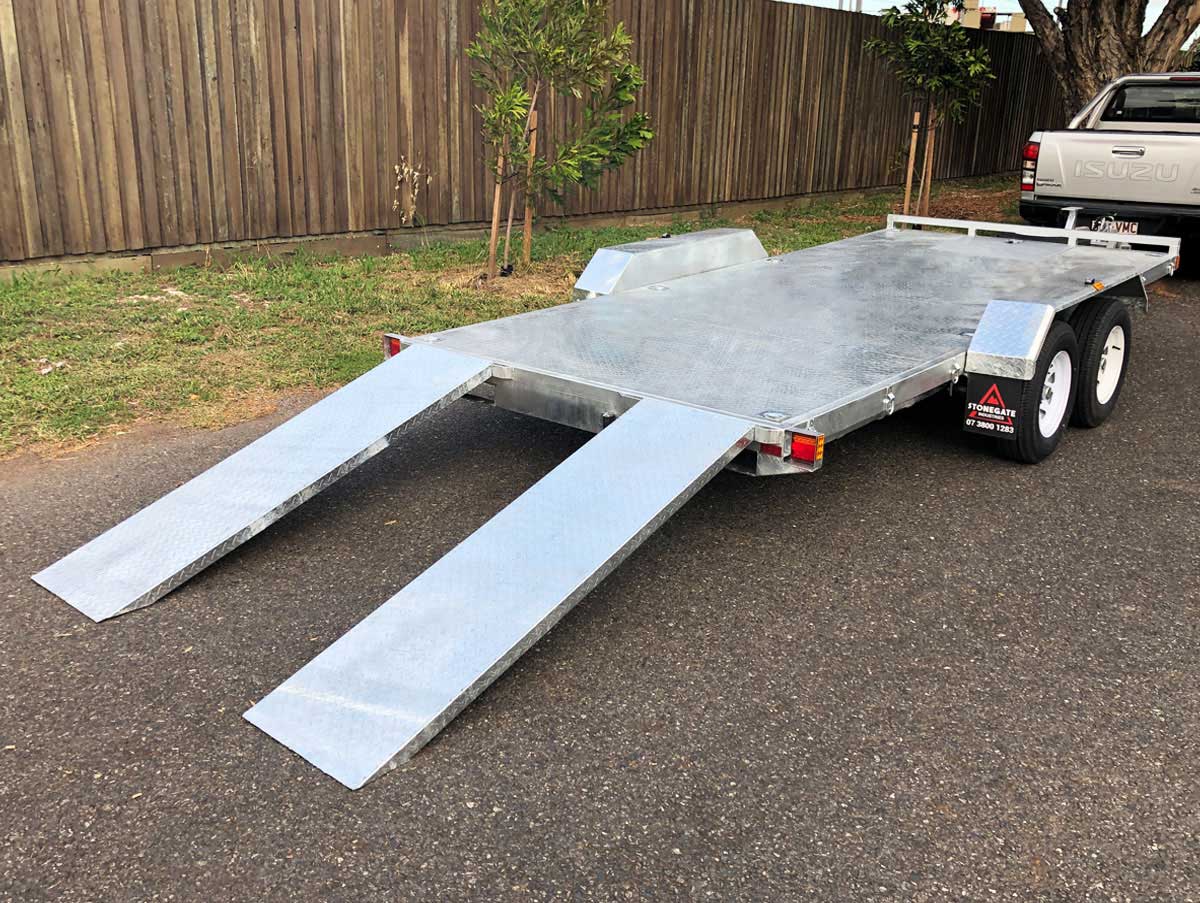

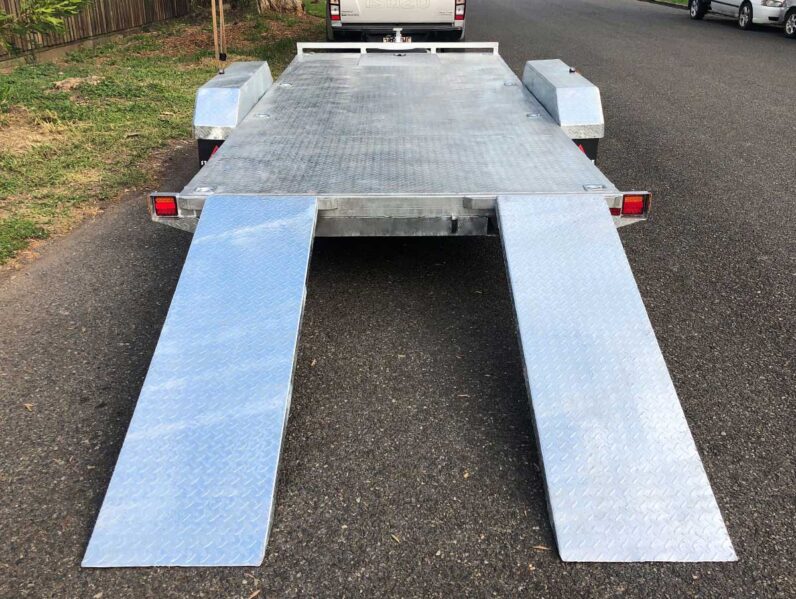

1600mm Long Slide Out Ramp
10″ Electric-brake with 6 Studs
Tilt Function
Floor Size: 5000mm x 1940mm

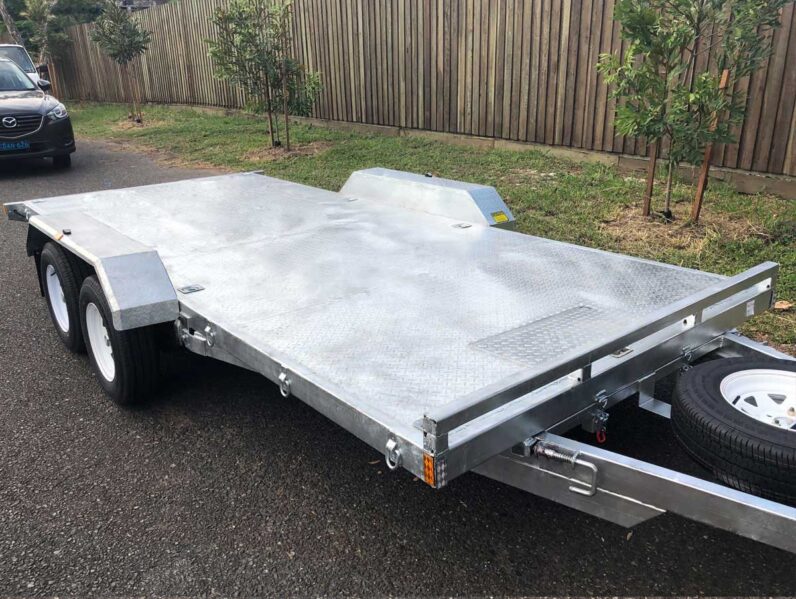

2.5mm Hot Dipped Galvanized Checker Plate Floor
Fully Welded Heavy Duty Body with RHS Tube Chassis
50mm Solid Square Super Heavy Duty Axle
2.5mm Checker Plate Mudguard
Chassis: 100mm x 50mm x 3mm RHS
Tie Down Rails All Around (50mm x 50mm x 2.5mm RHS)
7 Leaf Heavy Duty Springs with Rocker Roller Suspension
Free Heavy Duty Trailer Jack (2800 LBS)
Australia Standard 50mm Electric Braked Coupling

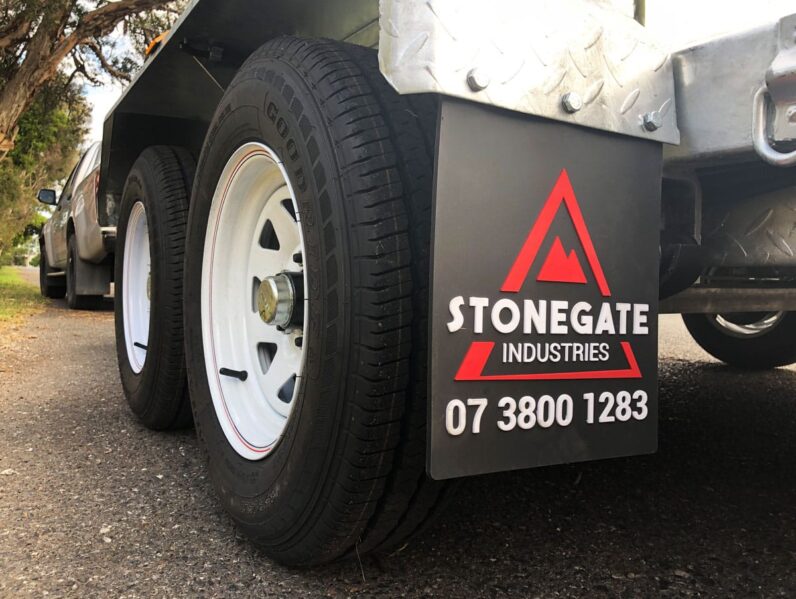

15″ Brand New Sunraysia Rims and Light Truck Tyres
Electric Brake-away Unit Fitted
LED Lights
ADR Standard Heavy Duty Chain & Load Rated Shackle
Flat 7 Pin Plug
Tare Mass: 1100KG
Pay Load: 2100KG

15″ Spare Wheel – $140

Read More

Ring us now 07 3800 1283 or 0430 012 339 for more details

Photos for Illustration Purposes Only!

Trailers sold by Stonegate Industries are covered by the manufacturers’ warranty for a period of 12 months. This warranty period is valid from the date of original purchase and covers all products against defective materials or workmanship (jockey wheel, bearings, tyres, wheels, brake pads & wearable parts are excluded). Please note warranty does not cover a product damaged due to improper maintenance, misuse or abuse, accident, external influences such as water and fire. Warranty does not cover repairs required due to normal wear and tear. Stonegate Industries take no responsibility for any damage caused to property or persons through storage and use of products and equipment. Warranty void if physical damage found on item, unauthorized repair/service/disassembling, abused, improper setup/use of the products, failing to follow product instruction, stress the product beyond its stated limit etc.

The warranty will not cover any freight or postage cost at both ends. Customer will have to inspect the condition of the trailers upon pickup and report to us within 7 days for initial fault. Warranty claim generally takes a few business days.

Please kindly retain your sales invoice as a proof of purchase and must be presented when making a warranty claim. Trailers must be returned to Stonegate Industries for warranty work to be done.

Inspection and Maintenance
1. Upon receipt, please inspect the condition of the trailer. Please also check the following before use. Tyre must be checked before use.

  • Nuts and bolts.
  • Moving positions.
  • Any bending, breakage or leakage.
  • Safety chain, Ensure chain is in good condition.
  • Lights and wiring.
  • Tyre pressure and condition.
  • Any abnormal noise of vibrations.

2. Check that the fastening of tyre nuts every 80km and tighten as required.

3. Apply grease to the hubs every 800km, bearing every 1200km.
