2.2m Aluminium Curved Folding Loading Ramp For Sale


Price For Single Ramp

2 Sold

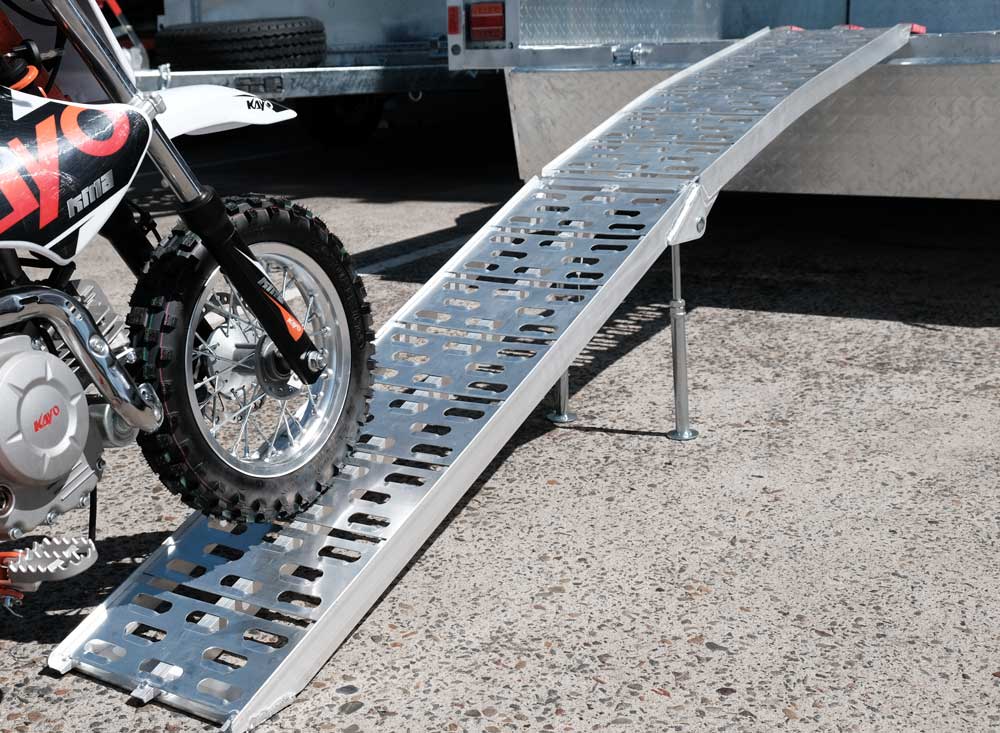

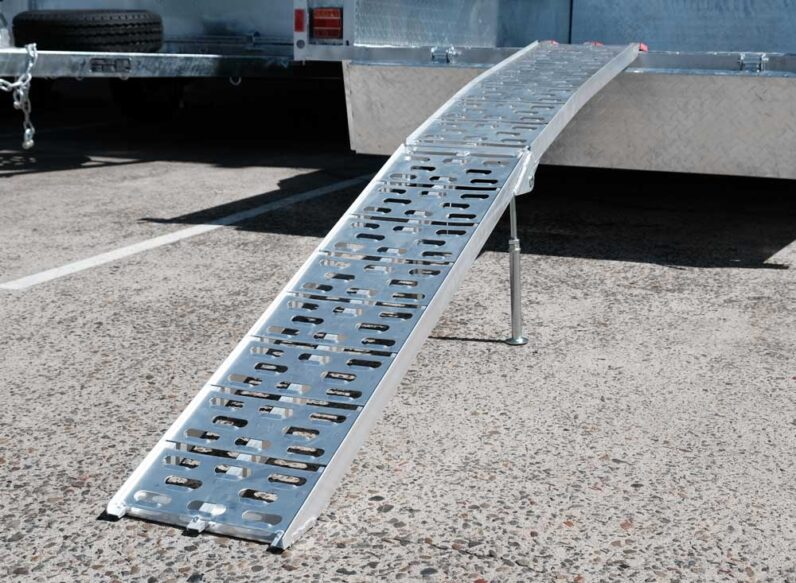

Safely and easily load cargo and material into your vehicle with our 2.2m long, lightweight aluminum ramp from Stonegate Industries. Complete with three red rubber-coated connection prongs, it’s designed to prevent marks or scratches on your vehicle and comes with a safety strap to securely hold the ramp in place during use.

Though lightweight, this ramp effortlessly manages up to 200kg on its own – and even more with support legs. Its folding design allows for compact storage, making it perfect for loading and unloading on the go. Versatile in use, the ramp is suitable for a range of applications, including as a walk ramp, motorcycle ramp, wheelbarrow ramp, and more.

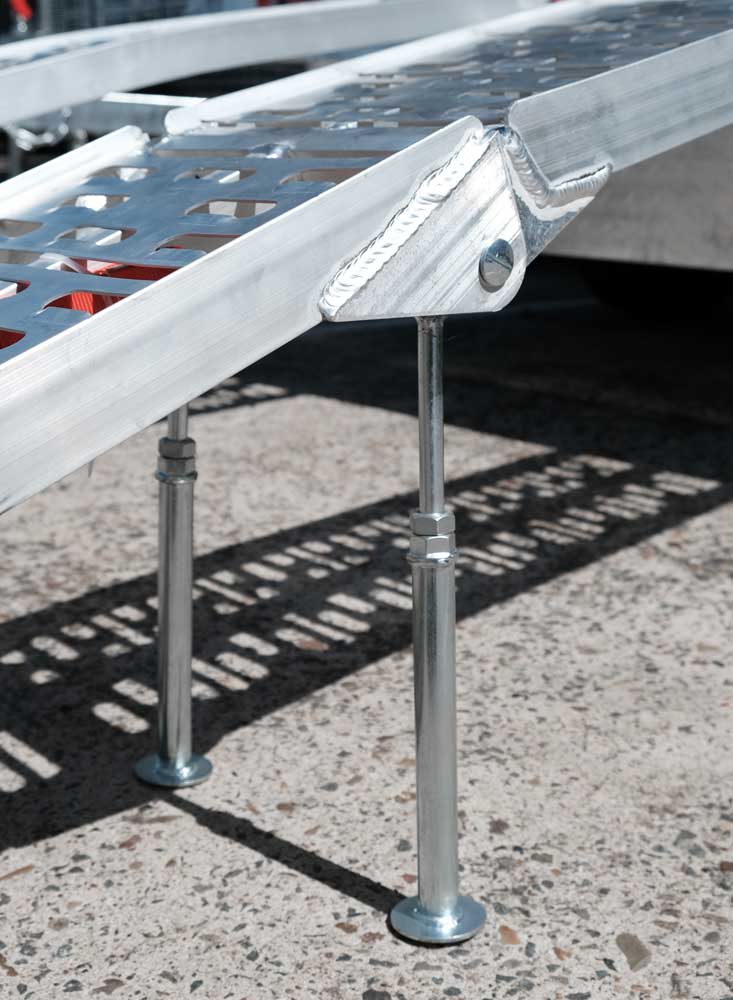

• Can hold up to 200kg (without using support legs) / 400kg per pair

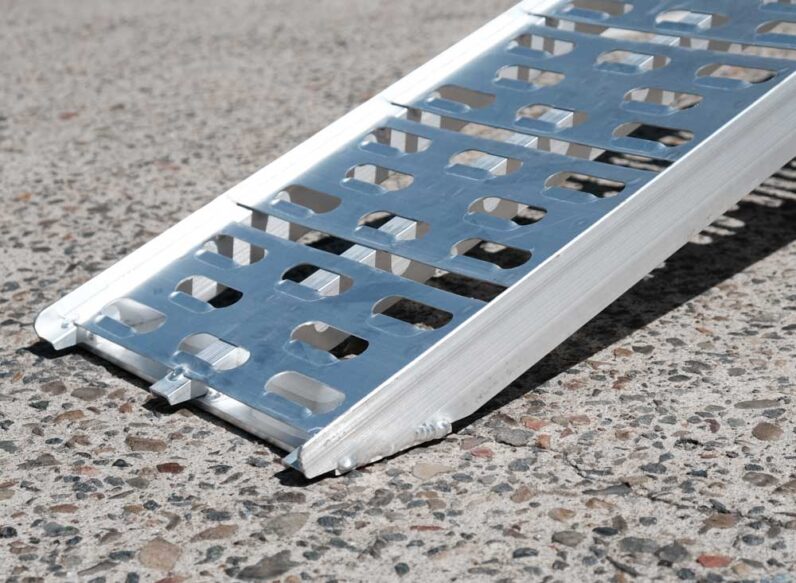

• Anti-Slip design
• Soft tip synthetic coated loading points to protect your trailer
• Wide enough for kids’ go kart, bikes, quads, buggies etc.
• Made from corrosion-free marine grade alloy
• Fold-away design
• Lightweight yet very durable
• Suitable for a wide range of applications
• LAMTS lab tested and certified


Loading Capacity

Max Weight Capacity Pair (Without Supporting Legs): 400KG
Max Weight Capacity Each (Without Supporting Legs): 200KG

Unfolded Status

Ramp Length: 2200mm
Ramp Width: 280mm
Ramp Depth: 160mm

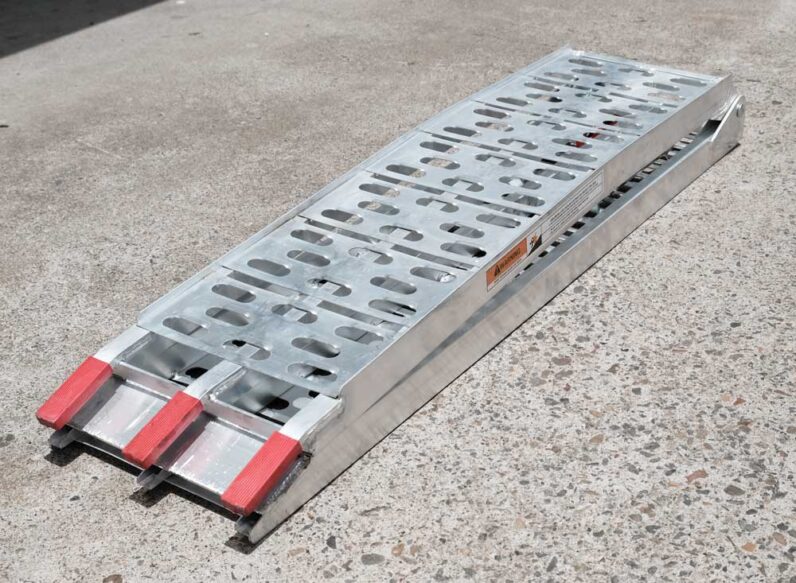

Folded Status

Ramp Length: 1170mm
Ramp Width: 280mm
Ramp Depth: 135mm

Shipping Dimension (For Pair)

Gross Weight: 17KG
Net Weight: 16KG
Dimension: 1170mm x 280mm x 310mm

If you have any questions, please give us a call on (07) 3800 1283 or email us at [email protected].

Additional information

Weight 17 kg
Dimensions 117 × 28 × 31 cm
