Description

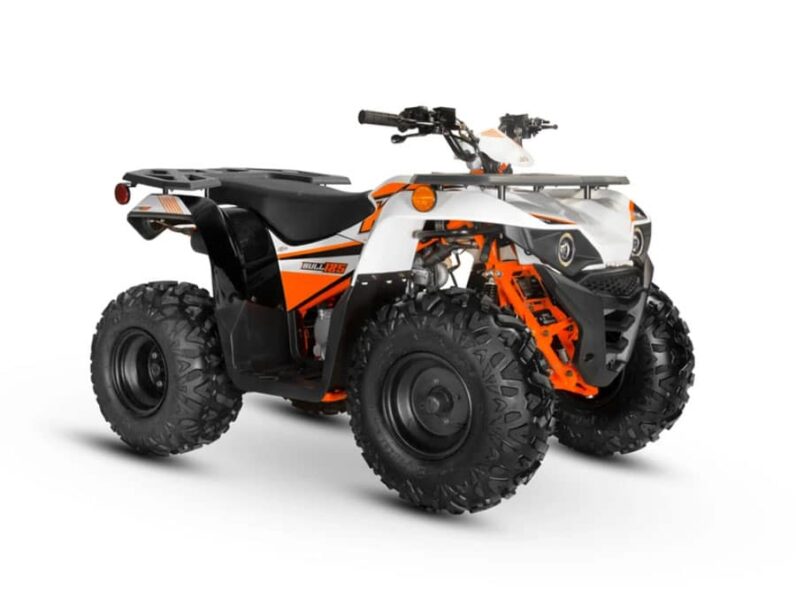

For more ambitious kids and teens, keep up with the bigger ATVs with the Bull 125 Farm Quad.
• 124.0cc 4-Stroke Air Cooled Engine
• 4.5L Fuel Tank
• Semi-auto
• Electric Start
Specifications
Engine |
||||||||
| Engine Type: | Single-cylinder, 4-stroke, Air cooling, Semi-Auto, (R-N-1-2-3) | |||||||
| Displacement: | 124cc | |||||||
| Bore*Stroke: | 52.4mm*55.5mm | |||||||
| Compression Ratio: | 9.0 : 1 | |||||||
| Max. Power(kw/rpm): | 6 : 8000 kw/rpm | |||||||
| Max. Torque(N.m/r/min): | 8 : 5000 N.m/r/min | |||||||
| Fuel System: | Standard Carburetor | |||||||
| Staring: | Electric | |||||||
| Transmission: | Semi Auto Chain Drive | |||||||
| Ignition: | CDI | |||||||
Chassis / Brake / Wheel |
||||||||
| Frame: | Steel Frame – Professional design and processed by KAYO | |||||||
| Front shock: | 265mm Non-adjustable | |||||||
| Rear shock: | 265mm Adjustable | |||||||
| Front Braking: | Disc Brake | |||||||
| Rear Braking: | Disc Brake | |||||||
| Front Wheel Rim: | Steel 8*5.5AT-4/88 67 | |||||||
| Rear Wheel Rim: | Steel 8*7.0AT-4/110 90 | |||||||
| Front Tyre: | 8″ AT19*7.0-8 | |||||||
| Rear Tyre: | 8″ AT18*9.5-8 | |||||||
Dimensions and Capacities |
||||||||
| Vehicle Size: | 1430 x 860 x 890 mm | |||||||
| Wheel base: | 910mm | |||||||
| Seat Height: | 665mm | |||||||
| Ground Clearance: | 115mm | |||||||
| Dry Weight: | 98kg | |||||||
| Fuel Capacity: | 4.5L | |||||||
| Packing Size: | 1430 x 815 x 600 mm | |||||||
If you have any questions, please give us a call on (07) 3800 1283 or email us at [email protected].
Important Notice
- This vehicle is for off-road purposes only and cannot be registered.
- The laws around the use of this vehicle may vary from state to state.
- Always check your local council and road traffic laws prior to using this vehicle to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
- Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.
